Range Rover P25A9 Fault

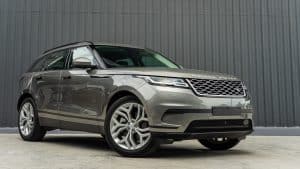

Mr L was on a routine journey when the engine management light came on on his 2018 Range Rover Velar. Moments later, a warning message relating to the engine oil system followed. There had been no build-up, no change in how the vehicle was running, and no reason to expect it.
An oil-related warning appearing mid-drive is enough to unsettle any vehicle owner. The Range Rover Velar engine warning lights left Mr L deeply concerned. What had triggered them? Was it safe to carry on driving? And what would happen if the problem was left unaddressed?
Mr L, from Taunton, contacted Shires Garage in Langport after a friend recommended us. He wanted the fault properly investigated, with an honest and straightforward explanation of what was going on.
The vehicle was with us shortly after.
Listening to the Driver and Confirming the Initial Findings
Our technicians at Shires Garage, Langport, began by speaking with Mr L to piece together the background. We asked when the warnings had first appeared, whether they had been constant or intermittent, and whether the vehicle had felt any different in the lead-up.
With that context established, our technicians connected dealer-level diagnostic equipment and ran a full system scan. The scan produced one stored fault code:
- P25A9-13: Piston cooling oil control circuit open. This fault code confirmed an open circuit in the piston cooling oil control valve’s electrical circuit, as detected by the engine control module (ECM).
When working correctly, the piston cooling oil control valve controls the flow of engine oil to oil jets inside the engine block, as commanded by the ECM. These jets spray oil onto the underside of the pistons, helping to control piston temperature. Without a functioning electrical circuit, the ECM may not be able to actuate the valve correctly. If that happens, oil flow to the piston cooling jets may not be controlled as intended.
This is enough to activate the engine management light and produce an oil-related warning message on the dashboard, even when the oil level is correct. The warning reflects the engine’s ability to control oil flow to the piston cooling system. It does not necessarily mean the oil level is low.
With the fault code confirmed and the symptoms clear, our technicians at Shires Garage moved into a structured diagnostic process to identify the root cause of the Range Rover P25A9 fault.
Identifying What Was Behind the Range Rover P25A9 Fault
The fault code had pointed our technicians in the right direction for the P25A9 Range Rover diagnostic. An open circuit had been confirmed, but the code couldn’t tell us where the break was. It could have been in the wiring, the connector, the valve, or elsewhere. Our technicians tested each possibility in sequence.
Step 1: Manufacturer technical information review
Our technicians accessed the manufacturer’s technical information system before any hands-on work began. They checked for known issues, technical service bulletins, recalls, and field remedies connected to the P25A9 fault on the Range Rover Velar.
- Starting here ensures our diagnostic work is shaped by current manufacturer guidance.
Step 2: Visual inspection of the wiring harness
The wiring harness running to the piston cooling oil control valve was visually inspected for damage, chafing, corrosion, or any form of disturbance that could account for the open circuit.
- The harness was in good condition. No visible faults were found.
Step 3: Connector and terminal pin inspection
Our technicians examined the electrical connector at the valve and the terminal pins within it. A pin that has become corroded, displaced, or poorly seated can produce an open circuit reading, even when the wiring itself is in good condition.
- The connector and terminal pins were acceptable. No corrosion or mechanical faults were identified.
Step 4: Oscilloscope testing of the circuit
To go further than a visual assessment could take us, our technicians used an oscilloscope to test the electrical integrity of the wiring between the engine control module and the piston cooling oil control valve. This gave our technicians a real-time view of signal and supply behaviour, rather than relying on a static resistance check alone.
- The wiring tested within expected parameters, confirming the circuit between the control module and the valve was intact.
Step 5: Valve activation test
With all other parts of the circuit now cleared, the valve was the logical focus. Our technicians used dealer-level diagnostic software to command the valve to activate and monitored whether it responded as expected.
- The valve did not respond as it should have. Testing indicated the valve had failed, establishing it as the root cause of the Range Rover P25A9 fault.
Our technicians had tested each section of the circuit individually and cleared them all. The wiring and connections were sound, confirming the valve as the only failed component.
How Was the Piston Cooling Oil Control Valve Failure Addressed?
With the diagnosis complete, our team at Shires Garage got in touch with Mr L to explain what had been found. We took him through the testing that had been carried out, confirmed that the wiring and connectors were all clear, and explained why the piston cooling oil control valve needed replacing. Mr L approved the repair, and the work started.
Here’s what was carried out:
- The failed piston cooling oil control valve was removed from its position in the engine block. The valve is located beneath other engine components, meaning careful disassembly was needed to access it without disturbing adjacent systems.
- A new replacement valve was fitted. Seating, sealing, and electrical connection were all checked and confirmed before reassembly.
- The harness and connector were reconnected to the new component.
- All stored fault codes were cleared from the engine control module.
- Post-repair system checks confirmed the new valve was responding correctly to the engine control module.
- A final system scan verified no remaining fault codes and confirmed the oil-related warning message had cleared.
How the Vehicle Performed After the Range Rover Oil Control Valve Replacement
Mr L’s Range Rover Velar left Shires Garage with the dashboard clear. The engine management light was off, the oil-related warning was gone, and the piston cooling oil control valve failure had been identified, corrected, and confirmed through post-repair checks. The system was operating as it should.
Mr L was pleased with both the process and the result: a careful investigation that worked through each part of the circuit, a fault traced to a failed piston cooling oil control valve, and the whole problem resolved in a single visit. Our team made sure communication was clear and consistent from start to finish, so Mr L always knew where things stood.
For Mr L, choosing Shires Garage meant a quicker turnaround than a main dealer, a competitive repair cost, and the knowledge that the Range Rover P25A9 fault had been diagnosed through a careful, professional process.
